OSU Filter Wheel and Echelle CCD at the 2.4m

Updated 09/05/08 (Barr/MDM)

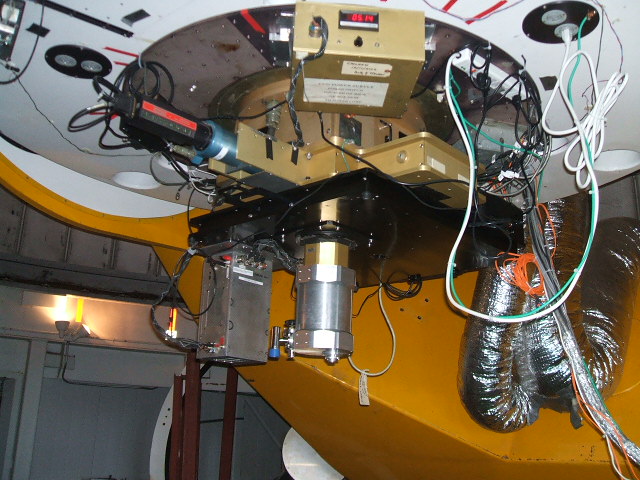

New OSU Filter Wheel with the Echelle CCD mounted at the 2.4m.

Looking from the north west side.

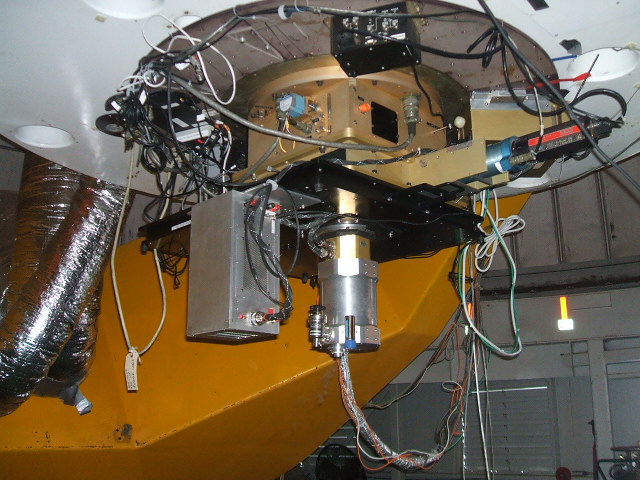

OSU Filter Wheel and Echelle CCD looking from north east side.

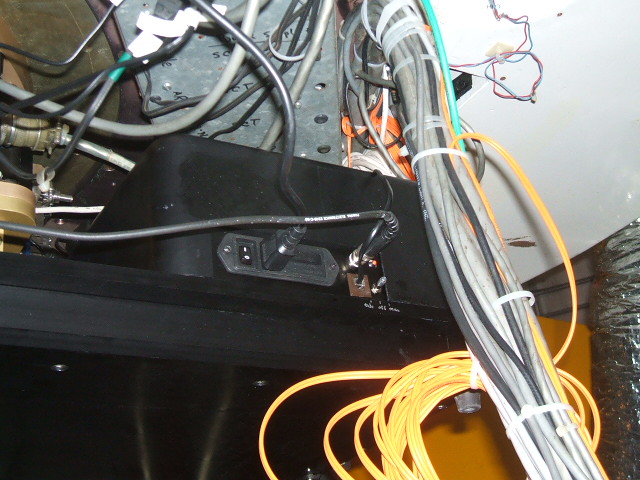

Filter Wheel electonics and shutter controller box.

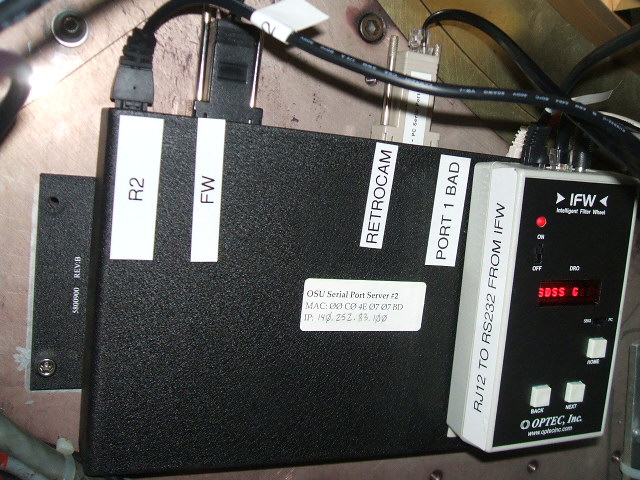

Port server for the OSU filter wheel uses the same port server as RETROCAM.

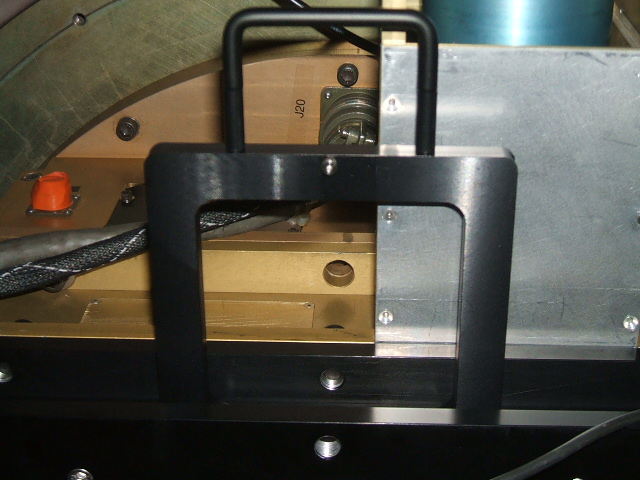

Filter wheel dark slide, MAKE SURE IT IS OUT.
