Modspec

Updated 02/02/08 (Barr/MDM)

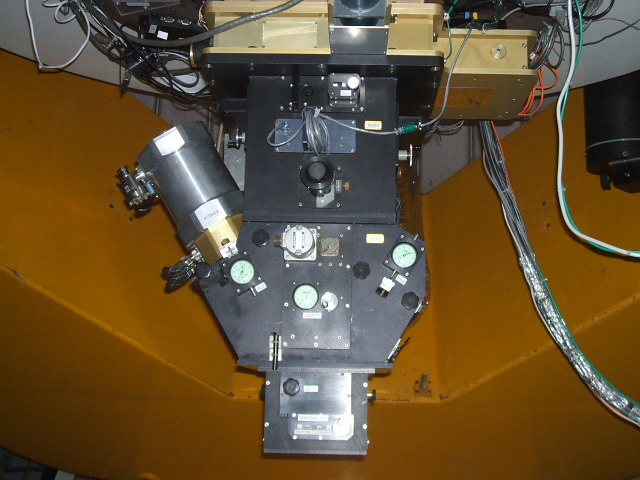

Modspec on the 2.4m looking from

control room direction.

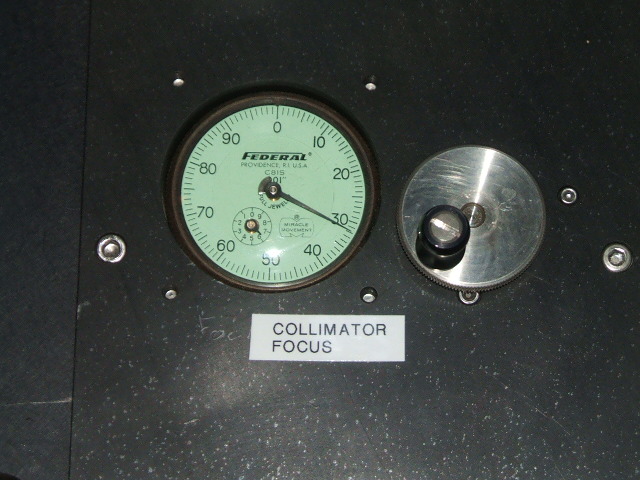

Collimator Focus Dial Indicator

and adjustment knob.

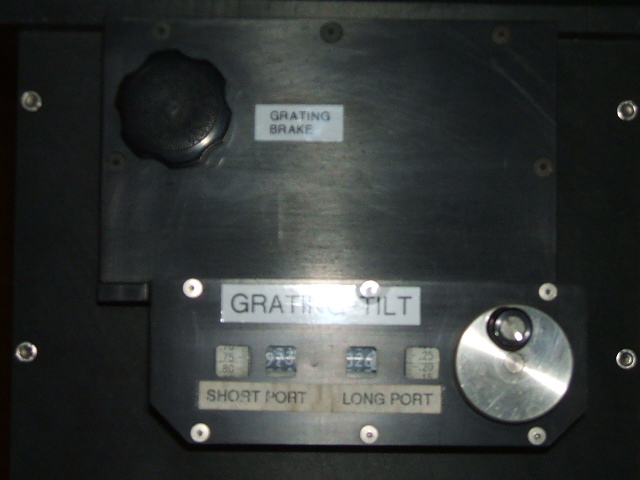

Grating tilt brake and indicators for the SHORT

and LONG ports

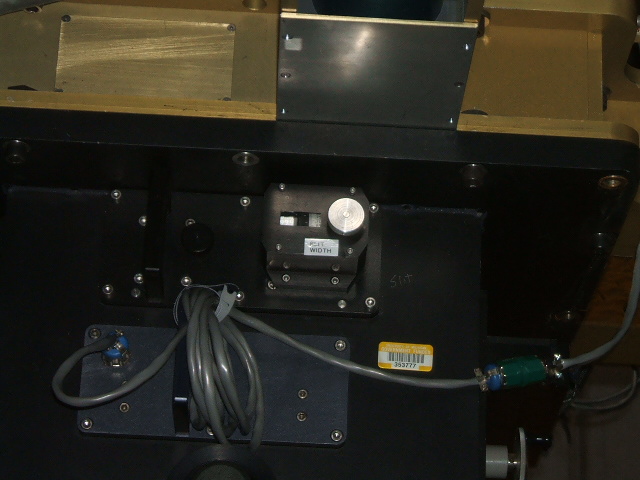

Slit width adjustment knob and indicator.

Echelle CCD.

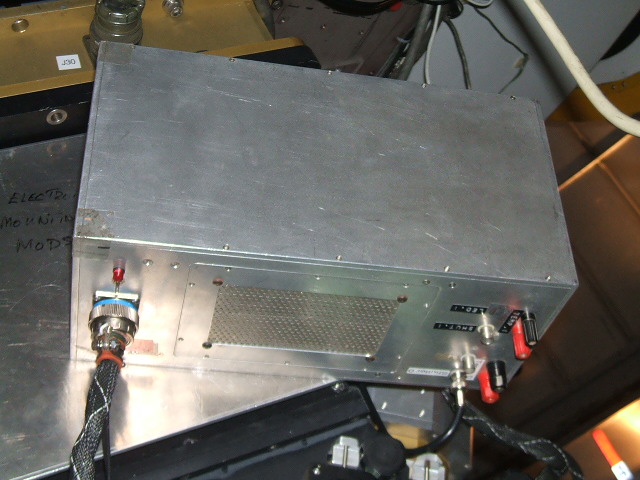

CCD Controller Box.

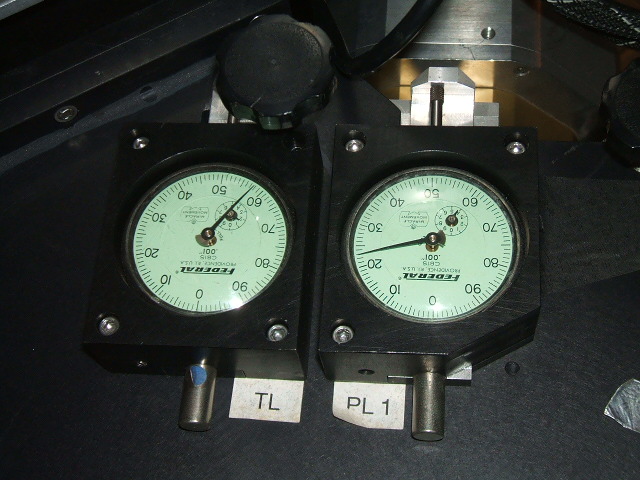

TL((tilt)reading .158) and PL1 (reading .423) Dial indicators.

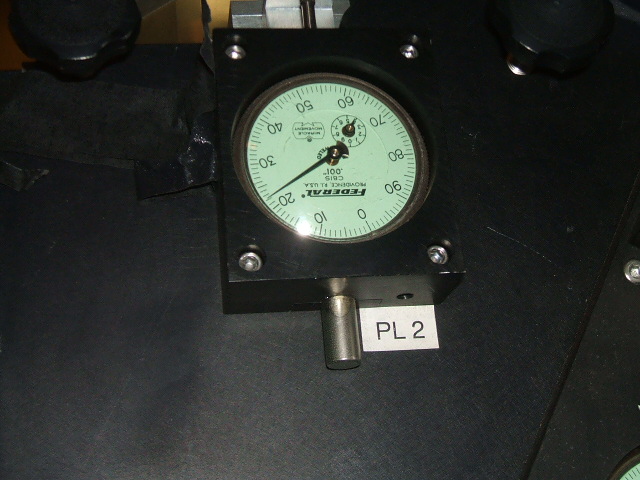

PL2 (reading .4225) Dial indicator.

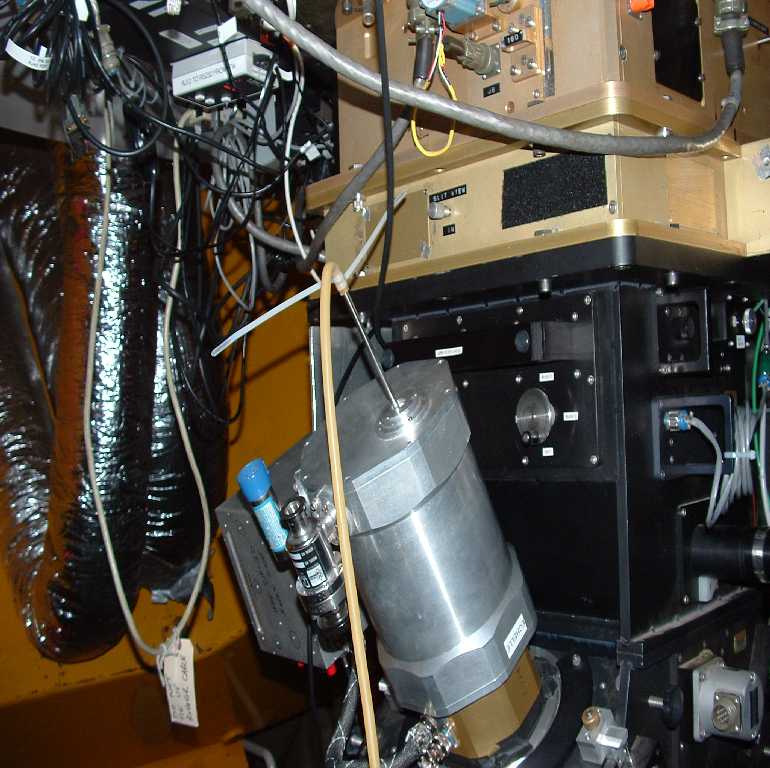

Echelle on Modspec with LN2 fill tube

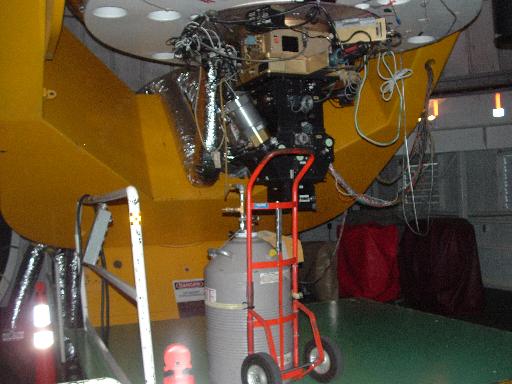

OSU storage Dewar on platform ready to fill the Echelle
